| ALM-1000
|
Alarm Sensing Module |
|
|
| For Visual, Audible and Remote
Indications of Alarm Conditions |
|
|
|
|

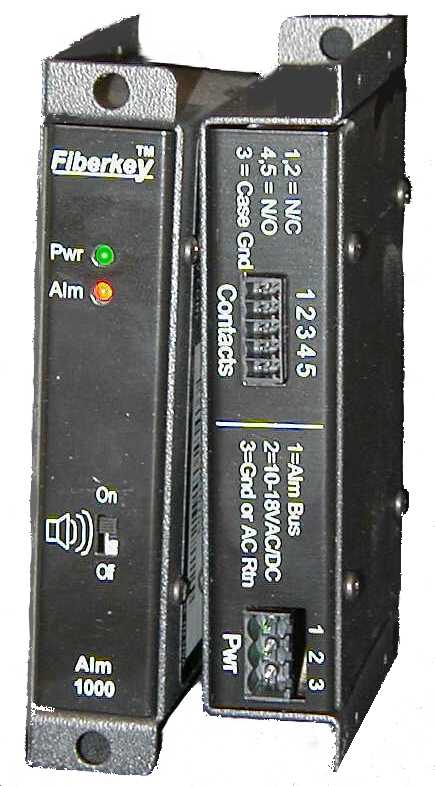

The ALM-1000 provides an indication of an alarm condition that occurs in any
LuxLink™ fiber optic transmission module to which it is connected.
When an alarm condition is sensed, a red indicator LED on the unit begins to
blink and an audible beeper begins to sound. In addition, a set of SPDT
contacts are activated for the operation of a remote device.

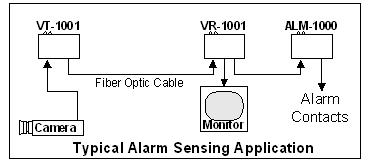

The ALM-1000 may be used to detect the loss of a signal, or to detect the
occurrence of a broken fiber depending on the module it is connected to. The
unit may be used in either a stand-alone mode or mounted to any of the RMP
series of rack mounting panels. |
| |
| Specifications |
|
|
Important Features |
| Compatibility |
Any
LuxLink™ module |
|
· Visual
and Audible Indications |
| Visual Indicator |
Blinking Red LED |
|
· Remote SPDT
Contacts |
| Audible Indicator |
Beeping Piezo Sounder |
|
|
| Controls* |
Sounder On / Off |
|
|
| Remote Alarm Contacts |
SPDT |
|
|
| Output Contact Ratings |
0.5 A @ 125 VAC
1.0 A @ 24 VDC |
|
|
| Contact Connector |
Removable Terminal Block |
|
|
| Operating Temperature |
-35° to+75° C |
|
|
| Power Requirements |
11-24 VAC/DC @150mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
* Red Alarm LED and Remote Alarm Contacts cannot be turned off.
Note that all specifications are subject to change without prior notice.
