OC-1002

Optical Coupler / Splitter


For Splitting or Joining optical signals

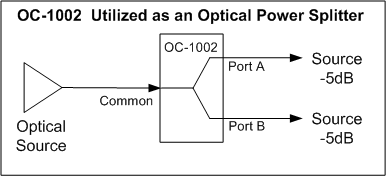

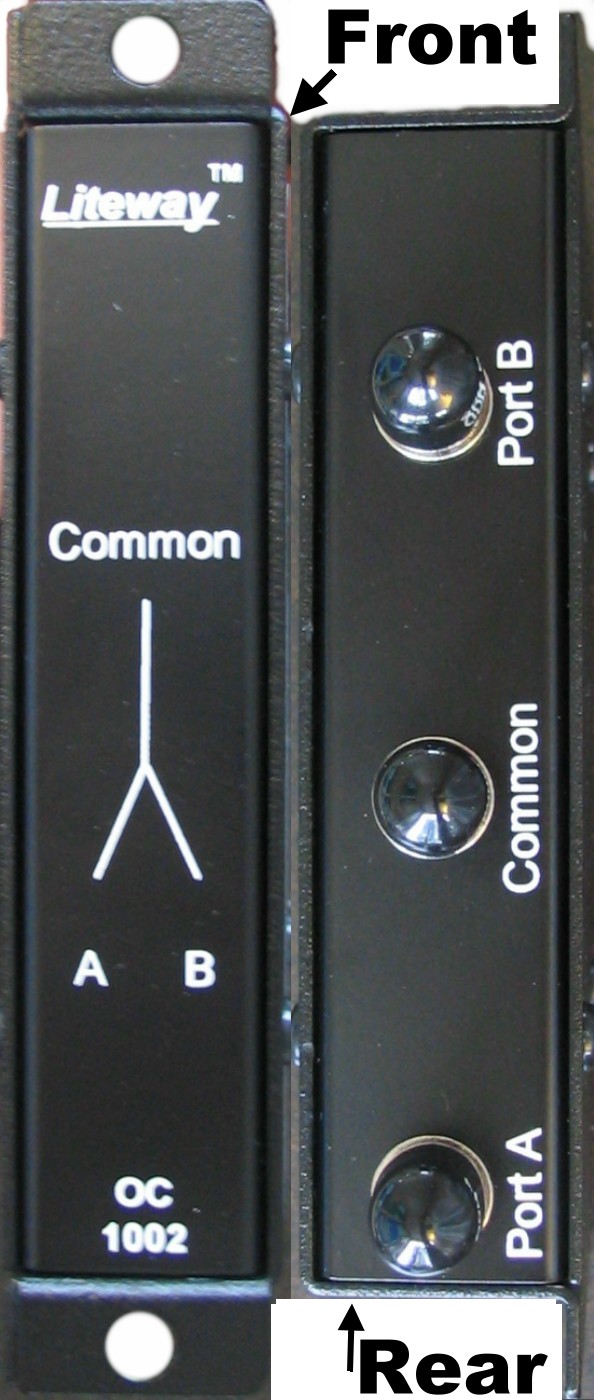

Optical Splitter Application   Click for a larger image of Optical Coupler

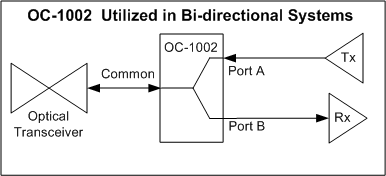

Optical Coupler Application


The OC-1002 Fiber Optic Optical Coupler consists of a 1 x 2 optical coupler. Coupler modules utilized for the management of optical power and wavelength. Typical uses are as an optical power splitter or to implement a single fiber bi-directional transmission system. They are excellent for use with DWDM's, EDFA's and Other Linear Bandwidth Applications

  Specifications     Important Features
  Operating Wavelength  850-1310 nm for -1, -3 models
1310-1550nm  for -7 models		    · Completely Passive Device
Fibers Accommodated  Multi-mode for -1,-3 models
 Single-mode for -7 models		  · Rack Mountable
Optical Connectors  ST/PC for -1, -3 models
 FC/PC for -7 models		  · Multimode & Single mode
     Versions available
Insertion Loss Common to or from A or B  4 dB Typical
Insertion Loss A to from B  20 dB Minimum
Operating Temperature  -35 to +75 degrees C
Power Requirements  None
  Physical Size (mm)   5.0”(127)H  x 1.0"(25.4)W
     x 3.0"(76)L


*Note all specifications are subject to change without notice
