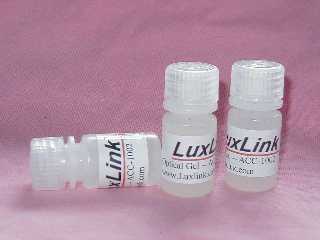

| OG-1001
|
Optical Gel |
|
|
| Optical Coupling Gel for Fiber
Optic Connectors |
|
|
|
|
The Luxlink™.OG-1001 is a
non-curing optical coupling gel. This is a stable index-matching synthetic
gel with a wide temperature range. The index of this gel is 1.457, which
matches the index for silica glass (fiber optic cable). The gel is
transparent to radiation in the near UV, the visible, and the near infrared.
Use of the gel is to minimize reflection at air gap between fiber optic end
faces. Designed for high optical clarity with absorption loss less then
0.0005% per micron of path length. Ultra filtered so that no particles
larger then 34 um, nor more then 300 particles greater then 1 um per cubic
centimeter. Sold in 0.4 oz containers. (Note we also have Optical Gel
with an index of 1.517 for BK-7 glass OG-1052)
Price $38.00 USD exworks NY USA (ground shipping
USA $5)
MSDS-Material Safety Data Sheet (457Kb pdf)
|
|
Technical Specifications |
| Refractive Index |
n (5893 Angstroms)
25° C = 1.457 |
| Cauchy Equation (at
25° C) |
n (W) = 1.44514 + (431760) / W2 + (-1.80659E+11) / W4
where W =wavelength in angstroms |
| Composition |
Aliphatic
Hydrocarbons & Gelling Agent |
| Appearance |
Colorless Gel |
| Odor |
None |
| Color Stability |
In sun: no Visible
change after 9 years |
| Index change rate
by evaporation |
Very Low: 0.0000
expected: exposed surface area to volume ration of 0.2 sq. cm / cc @ 25°
C for 32 days |
| Recommended
Operation Temperature |
-20°
C to +100° C |
| Freezing Point |
-67°
C |
| Boiling Point |
>416°
C @ 760mm Hg |
| Flash Point |
>245°
C COC |
| Density |
0.878 g/cc @ 25°
C |
| Density Temp. Coef |
-0.0007 g/cc/
° C |
| Coef of Thermal
expansion |
0.0008 cc/cc
° C |
| Viscosity
|
Soft Gel @ 25°
C |
| Insoluble |
Acetone, Ethanol,
Water |
| Partly Soluble |
Carbon
Tetrachloride, Ethyl Ether, Freon TF, Heptane, Methylene Chloride, Naphtha,
Toluene, Turpentine, Xylene |
| Clean Up |
Wipe surfaces
clean, then use soap and water. |
| Toxicity |
Low (request MSDS) |
| Incompatible |
Latex Rubber, Tygon
(types S-50-HL, R-3603, B44-3) |
| Compatible 10 month
immersion @ 25° C |
Acrylic, Cellulose
Acetate, Epoxy, Mylar, Nylon, Polycarbonate, Polyester, Polyethylene,
Polypropylene, Polystyrene, Polyurethane, Polyvinyl Chloride, Phenolic,
Teflon, Silicone & Fluorosilicone Rubber, Neoprene Rubber, Aluminum, Copper,
Brass, Steel. |
*Note all specifications are subject to change without notice
