Electrical Connectors
The removable terminal blocks are supplied with all equipment. Depending
on the model these are the below types.

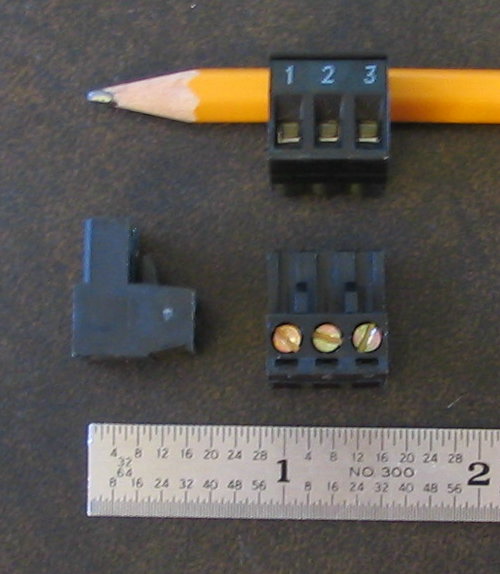

What is the 3 Position connector?
The connector is a standard European removable terminal block, 3 position 5.00
millimeter. Accepts wire range 12 to 26 AWG. Electrical rating of
connector 300V, 15A. Wire strip length 5.0mm. Max torque 5 in-lbs.
| Manufacturer |
|
Part numbers |
| Molex
|
|
39520-0003, 39520-0103,39520-5003 |
| Kobiconn |
|
P035ESDVP |
| Buchanan |
|
796640-3 |
| On Shore |
|
ED950-3 |
| Weidmuller |
|
1625610000 |
| Phoenix Contact |
|
1754465 |

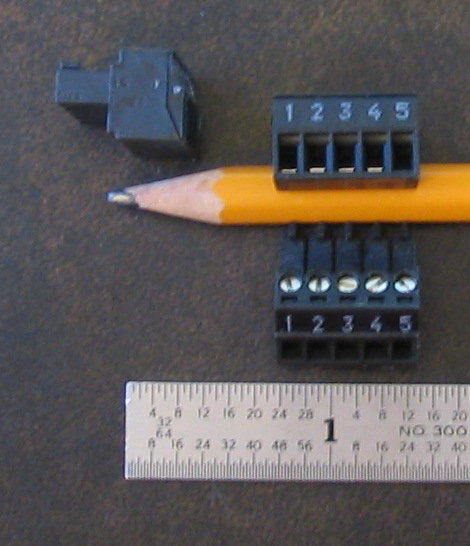

What is the 5 Position connector?
The connector is a standard European removable terminal block, 5 position 3.50
millimeter. Accepts wire gauge 16 to 24 AWG. Electrical rating of
connector 300V, 8A. Wire strip length 5.0 mm. Max torque 3 in-lbs.
| Manufacturer |
|
Part numbers |
| Molex
|
|
39500-0105 or 39351-0005 |
| On Shore |
|
ED1550-5-BK, ED1550-5-BK / 12345 L-R |
| Phoenix Contact |
|
MC 1.5/5-ST-3.5, MCVR 1.5/5-ST-3.5, MCVW 1.5/5-ST-3.5 |

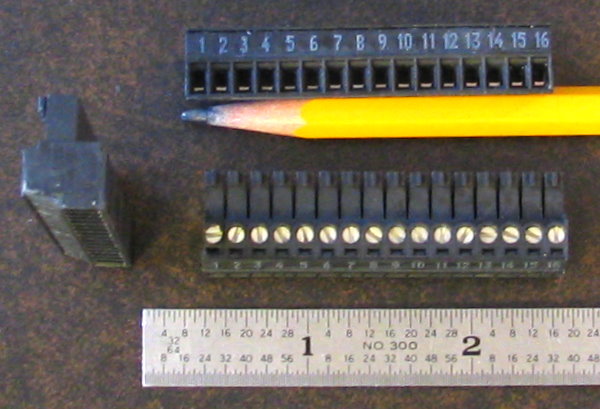

What is the 16 Position connector?
The connector is a standard European removable terminal block, 16 position 3.50
millimeter. Accepts wire gauge 16 to 24 AWG. Electrical rating of
connector 300V, 8A. Wire strip length 5.0 mm. Max torque 3 in-lbs.
| Manufacturer |
|
Part numbers |
| Molex
|
|
39500-0116,39351-0016 |
| On Shore |
|
ED1550-16-BK / 12345 L-R |
| |
|
|
|
