LuxLink™ Optical Switches

Optical switches are utilized to disconnect, bypass and reroute fiber optic communications.  All Optical switches are available in multi mode versions (-3 for ST connectors, -4 for SC connectors)  or single mode versions (-5 for SC connectors, -7 for FC/PC connectors)

All our switches are listed below.  Click to jump to class of switch
   A/B switches
   Bypass Switches
   Power Detection Switches
   Single Pole, Single Throw switches

Model	Description

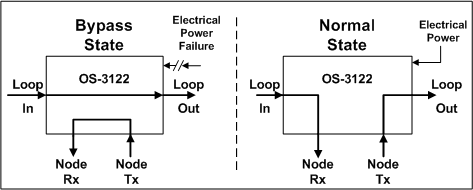

OS-3122	Single Optical Bypass Switch / Relay  --- Provides a bypass of node in a fiber ring, (e.g. failsafe).
OS-3222	Dual Optical Bypass Switch / Relay --- Provides a bypass of node in a dual fiber ring. Two OS-3122 in single housing

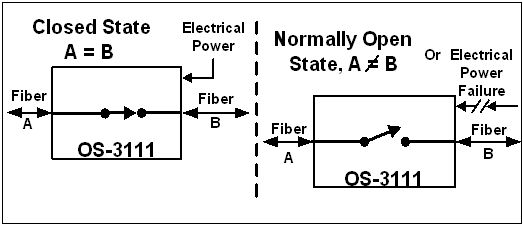

OS-3111	Single Pole Single Throw Optical Cutoff Switch (SPST, Normally Open)
OS-3211	Double Pole Single Throw Optical Cutoff Switch (DPST, Normally Open)

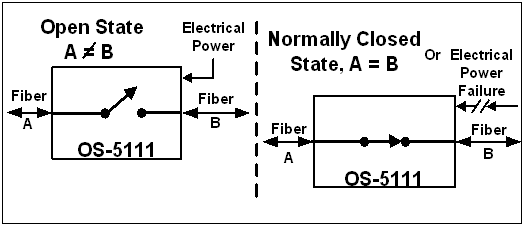

OS-5111	Single Pole Single Throw Optical Cutoff Switch (SPST, Normally Closed)
OS-5211	Double Pole Single Throw Optical Cutoff Switch (DPST, Normally Closed)

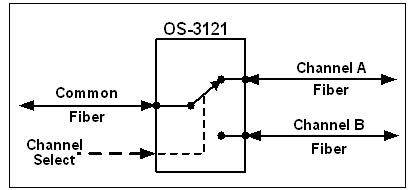

OS-3121	Fiber Optic A/B Switch  (Single Pole Double Throw)

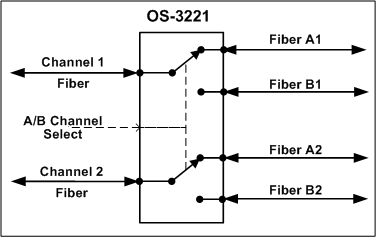

OS-3221	Fiber Optic Dual Path A/B Switch  (Double Pole Double Throw)

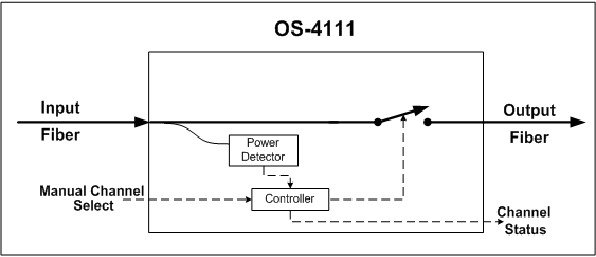

OS-4111	Optical Path Tamper Sense Switch (SPST)  --- Detects tampering of optical path and blocks communication

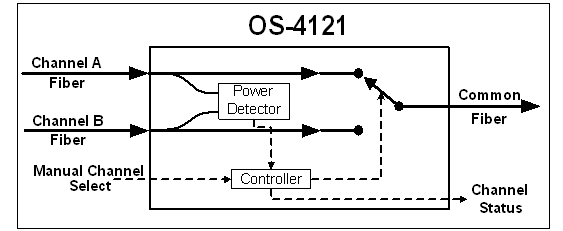

OS-4121	Redundant Path Optical Switch  --- Detects loss of optical signal and switches to backup path.

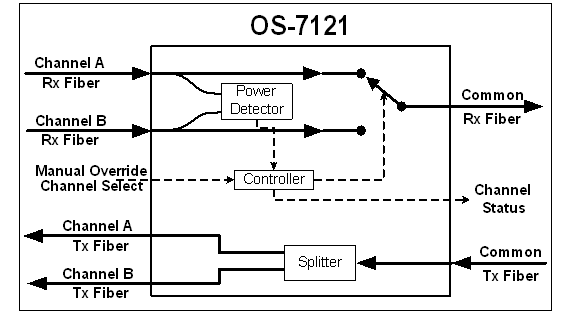

OS-7121	Redundant Bidirectional Path Optical Switch --- Detects loss of optical signal and switches to backup path.
Accessories
ALM-1000	Alarm module
DIN-1000	DIN Rail Mounting Adapter
RMP-1000,    2000, 3000	Rack mounting panel
PS-1205 US	Power Supply (US Wall Plug 0.5 Amp)
PS-1208 EU	Power Supply (European Union Wall Plug 0. 8 Amp)
PS-1210,  PS-1260	Power Supplies (1 & 6 Amp)

Remember, If you don't find the product you need, call as not all the available products are listed on the web.
