| OS-5111/5211
|
Optical Cut Off Switch |
|
|
| Fiber Optic Normally Closed Switch |
|
|
|
|

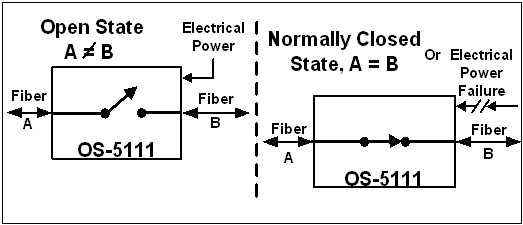

The OS-5111 is a “fiber optic relay” that can be
electrically controlled. The optical path through the units is purely
optical; i.e. there is no optical to electrical to optical conversion. There
is no electrical loss or electrical bandwidth limit on the fiber optic path.

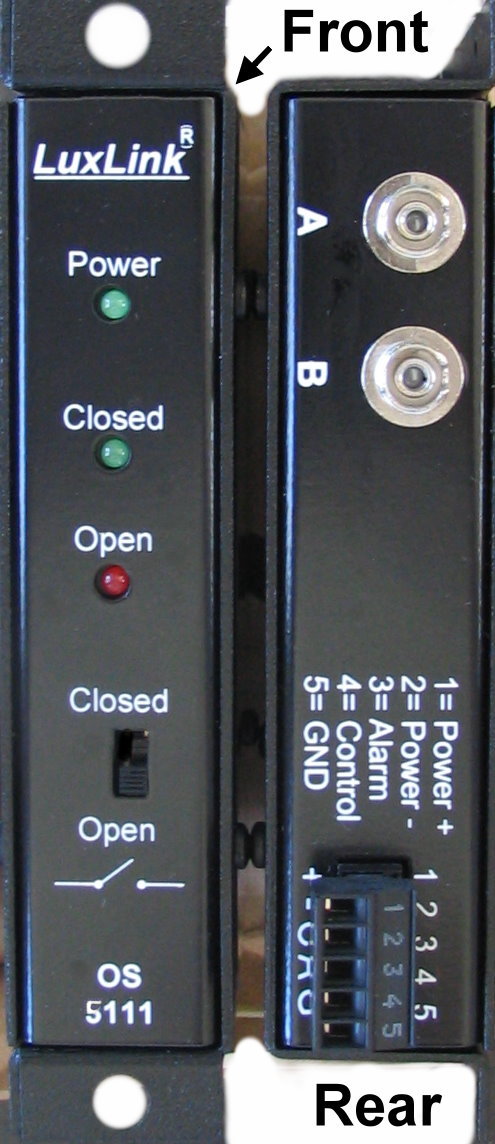

The optical path can be select via a front panel switch or via contact
closure input. In event of loss of power, the unit has a fail safe mode that
closes the switch.
Common applications for this device are optical routing, system bypass, network
cut off switch, and fiber optic testing.
For applications where two independent optical channels
need to be switched, the OS-5111 can be daisy chained or the OS-5211 is two OS-5111 in
a single package. If you require a normally closed optical switch see
the OS-3111
|
|
| Specifications |
|
|
Important Features |
| Switching Time |
< 10 ms |
|
·
Switching time <10ms |
| Back Reflection |
< -55 dB |
|
·
Fail-safe return to closed |
| Insertion Loss |
< 1.1 dB |
|
mode with loss of power |
| Cross Talk |
< -50 dB |
|
· Multimode &
Single mode |
| Switch life cycle |
> 1 million cycles |
|
Versions available |
| Optical Wavelengths |
850/1310, or 1310/1550nm |
|
· Status & Power Indicators |
| Optical Connectors |
ST/PC,
FC/PC, or SC |
|
·
Single model for stand
or rack mount |
| Power Requirements |
11-24 VAC/DC @150mA |
|
|
| Operating Temperature |
0 to +70 degrees C |
|
|
| Physical Size (mm) |
5.0”(127)H x 1.0"(25.4)W
x 3.0"(76)L |
|
|
*Note all specifications are subject to change without notice
