| RMP-1000, 2000,
3000 |
Rack Mounting Panels |
|
|
All our standard equipment can be mounted in a stander 19" Rack.
The RMP-1000, 2000, 3000 are a cost-effective rack mountable panels
that will allow most LuxLink fiber optic transmitters, receivers or
transceivers to be mounted to a standard EIA 19” rack frame. The panels are

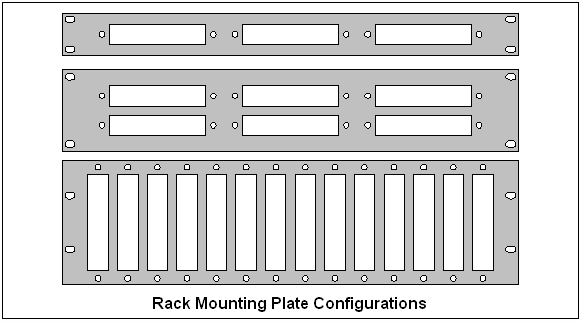

available in 1U, 2U and 3U configurations and may be used with either
external or integral mounted companion power supplies.
The simple nature of the rack mounting panels allows maximum space in the
rear of a rack enclosure for other equipment while still providing a rugged
mounting for the fiber optic equipment. When fully populated, an RMP has the
same front panel appearance as a common card-cage but at a significantly
lower overall cost.
|
| |
| Model No. |
Rack Size |
Total Slots |
Slots with Power Supply |
Physical size
(mm) |
Typical Supply |
Cost* |
| RMP-1000 |
1U |
3 |
2 |
1.75" (44.5) x 19"
(483) |
PS-1210 |
$55 |
| RMP-2000 |
2U |
6 |
4 |
3.50" (88.9) x 19"
(483) |
PS-1210 or PS-1260 |
$75 |
| RMP-3000 |
3U |
14 |
12 |
5.25" (133.4) x 19"
(483) |
PS-1260 |
$90 |
*All prices $US, domestic, Rack Only (power supply not included) and subject to change
Overall Finish, Black Powder Coated Anodized aluminum

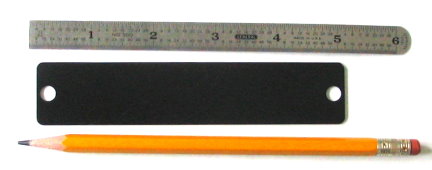

Blank filler plates are available. Order RMPB-1001
For fiber adapter plates see
RMPA-1004.
Note that all specifications are subject to change without prior notice.
