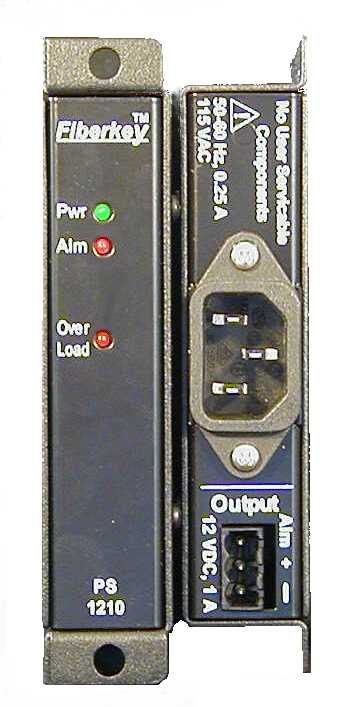

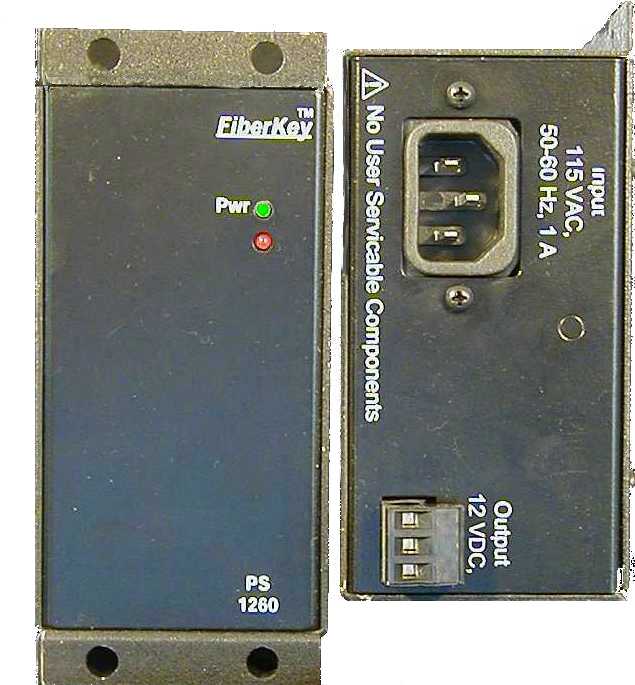

The LuxLink® The PS-1210 and PS-1260 are stand-alone or rack mountable
power supplies that may be used to power multiple LuxLink fiber optic
transmission units.
These power supplies have power, overload and alarm indicators. Internal
fuses protect the units in the event of an overload and will automatically

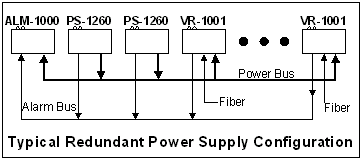

reset when the overload condition is removed. The power supplies have the
ability to be paralleled for redundant operation. Both North American and
worldwide versions of these power supplies are available.
Both of these efficient supplies are compliant with the
US Energy Independence and
Security Act of 2007 and current California Energy Commission (CEC)
efficiency standards. |
| |
| Specifications |
|
|
Important Features |
| DC Output Voltage |
12V unregulated |
|
· Redundant
Operation |
| DC Output Current |
PS1210 1 Amp |
|
· Self Resetting
Fuse |
|
PS1260 6 Amp |
|
· Power &
Overload |
| AC Input |
US 115 VAC, 50/60 Hz |
|
Indicators |
|
EU 230 VAC, 50 Hz
UK 230 VAC, 50 Hz
AU 240 VAC, 50 Hz |
|
|
| AC Input Connector |
Universal IEC |
|
|
| Indicator Lights |
Power, Overload, Alarm** |
|
|
| Optical Loss Budget |
0-12 dB (multimode),
0-12 dB (single-mode) |
|
|
| Output Connectors |
Removable Terminal Block |
|
|
| Operating Temperature |
-35º to +75ºC |
|
|
| Physical Size PS1210 |
7.0” x 5.0 x 1.0"
178mm x 127mm x 25.4mm |
|
|
| Physical Size PS1260 |
7.0” x 5.0 x 2.23"
178mm x 127mm x 56.6mm |
|
|
Note all specifications are subject to change without notice
** The Alarm light is used to indicate a failure of one supply
when two or more are connected for redundant operation.
