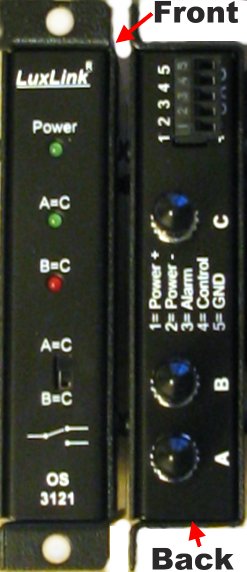

OS-3121        Optical A/B Switch    Click for a larger picture of Optical A/B switch
Fiber Optic A/B Switch

   Block diagram of optical swtich


The OS-3121 is a fiber optic switch that can be controlled remotely or through a front panel switch.    The optical path through the units is purely optical; That is, there is no optical to electrical to optical conversion. There is no electrical loss or electrical bandwidth limit on the fiber optic path. The optical path can be select via a front panel switch or via contact closure input. In event of loss of power, the unit has a fail safe mode that opens the switch.

Common applications for this device are optical routing, system bypass, network cut off switch, and fiber optic testing.  The OS-3121 control can be daisy chained to switch multiple optical connections.

Specifications Important Features
Switching Time  < 10 ms     Switching time <10ms
Back Reflection  < -55 dB   Fail-safe return to Ch A
Insertion Loss  < 1.3 dB       with loss of power
Cross Talk  < -50 dB   Multimode & Single mode
Switch life cycle  > 1 million cycles         Versions available
Optical Wavelengths  850/1310, or 1310/1550nm   Status & Power Indicators
Optical Connectors  ST/PC,  FC/PC, or SC    � Single model for stand
      or rack mount
Power Requirements  11-24 VAC/DC @ 150 mA
Operating Temperature  0 to +70 degrees C
Physical Size  5.0� x 3.0 x 1.0"
127mm x 76mm x 25.4mm


*Note all specifications are subject to change without notice
