| INSM-2304 |
Distribution Amplifier |
|
|
| For Distribution of Analog
Signals |
|
|
|
|

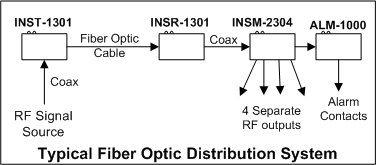

The INSM-2304 is a distribution amplifier (DA) that accepts an electrical
analog input signal and produces four individual electrical output signals
for distribution over four separate coaxial cables to other analog
receivers.
Integral indicators are also provided to continuously indicate the presence
of input signals as well as the presence of operating power making system
troubleshooting simple. Units can be mounted in our 1U, 2U, or 3U rack
panels, and may be daisy chained providing multiple outputs (e.g. 3 units,
in a 1U rack yields 10 outputs)
|
| |
| Specifications |
|
|
Important Features |
| System Bandwidth (per channel) |
DC to 100 MHz |
|
· DC to
100 MHz Bandwidth |
| Input / Output Impedance |
50 ohms |
|
· Signal & Power
Indicators |
| Input / Output Levels |
1 Volt peak to peak |
|
· Fully Adjustment
Free |
| Signal / Noise Ratio |
60 dB minimum |
|
·
Stand-alone, DIN or Rack
Mountable
(same unit) |
| Linearity & THD |
0.1% typical |
|
|
| Output channel isolation |
> 40 dB |
|
|
| Offset between channels |
<6 nanoseconds |
|
|
| Propagation Delay |
5 nanoseconds |
|
|
| Differential Gain |
0.01% |
|
|
| Differential Phase |
0.02 degrees |
|
|
| Voltage Noise |
14nV/root Hz |
|
|
| Current Noise |
1.5pA/root Hz |
|
|
| Second/Third Harmonic |
<-40dBc/Hz @10MHz |
|
|
| Output channels |
4 |
|
|
| Signal Connectors |
BNC |
|
|
| Indicators |
Pwr, Signal, Alm |
|
|
| Humidity |
0 to 95% non-condensing |
|
|
| MTBF (MIL-HBK-217D) |
>120,000 Hours |
|
|
| Operating Temperature |
-35º to +75º
C |
|
|
| Power Requirements |
11-24 VAC/DC @350 mA |
|
|
| Physical Size (mm) |
5.0” x 3.0 x 1.0"
(127mm x 76mm x 25.4mm) |
|
|
Note all specifications are subject to change without notice
